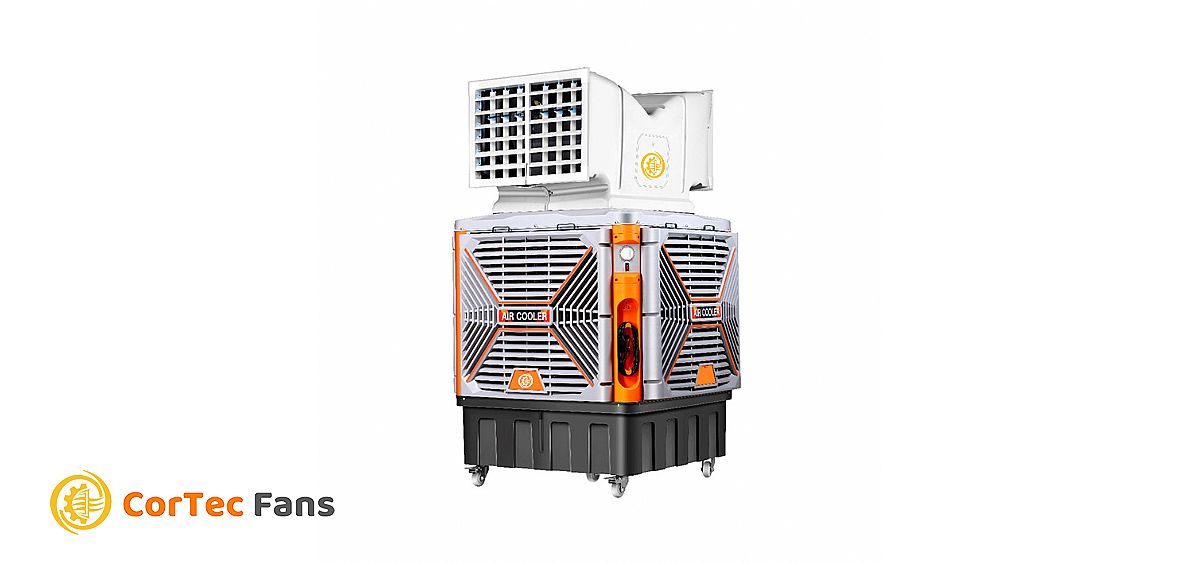

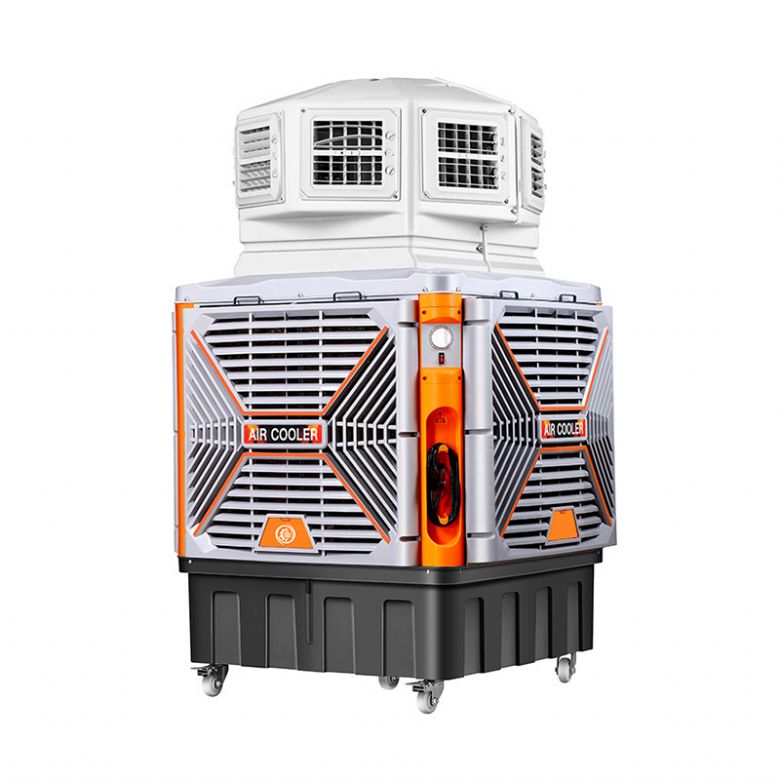

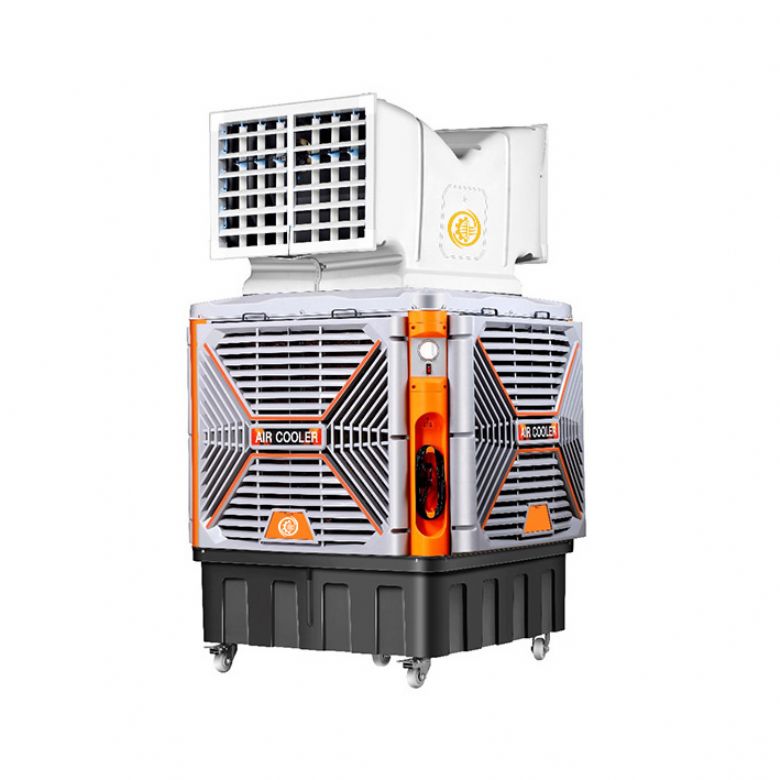

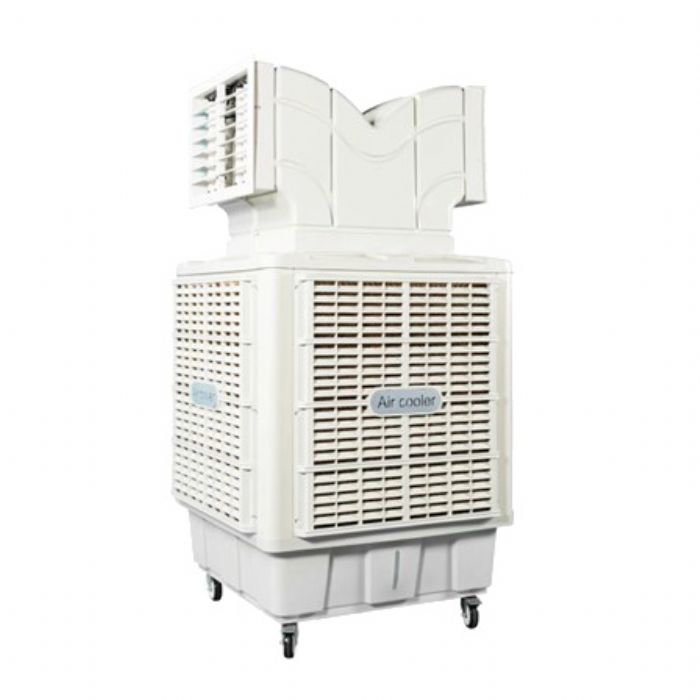

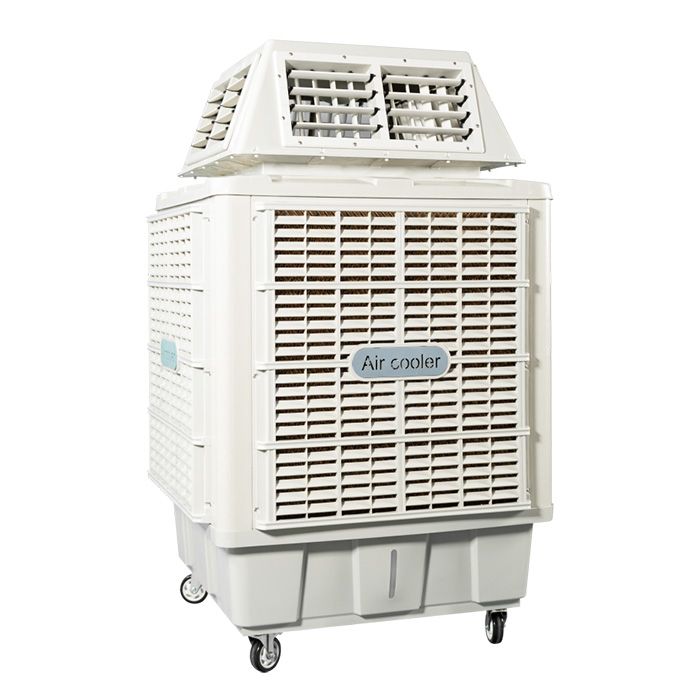

INDUSTRIAL AIR COOLER
CorTec Evaporative Industrial air cooler is a natural and highly efficient cooling method that uses the physical process of water evaporation to effectively absorb heat. The technology stands out for its outstanding efficiency and environmentally characteristics.
Contact us

TECHNICAL PARAMETER

Model

Motor Power

Air volume

Power

Voltage

Water consumption

Water storage

Net weight

Applicable area

CTEAC-1100

1.1KW18000m³/H1.1KW220V5-10L/H260L55kgs100-150㎡

CTEAC-1500

1.5KW22000m³/H1.5KW220/380V5-10L/H260L60kgs100-150㎡
CTEAC-22002.2KW25000 m³/H2.2KW220/380V5-10L/H280L70kgs150-220㎡


DESCRIPTION

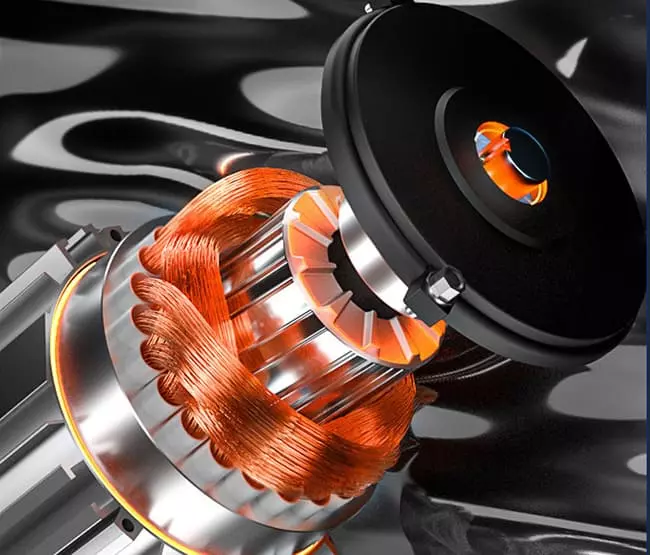

Fan motor

High speed pure copper core motor, water-proof motor with long lifetime, better balance and stability, RPM is 1450 which high speed motor.

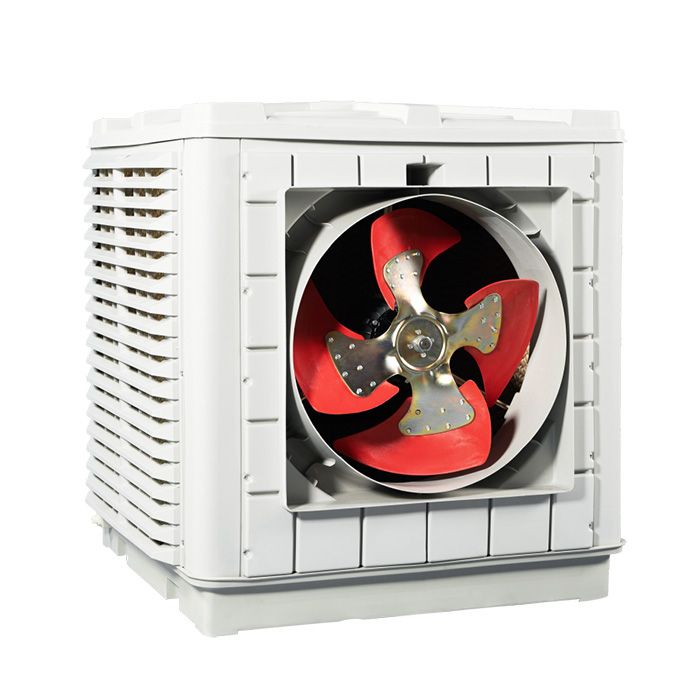

Fan blades

Aluminium casting fan blades which is not easy to deform or break under heavy pressure. Its with large air volume, low noise and very stable.

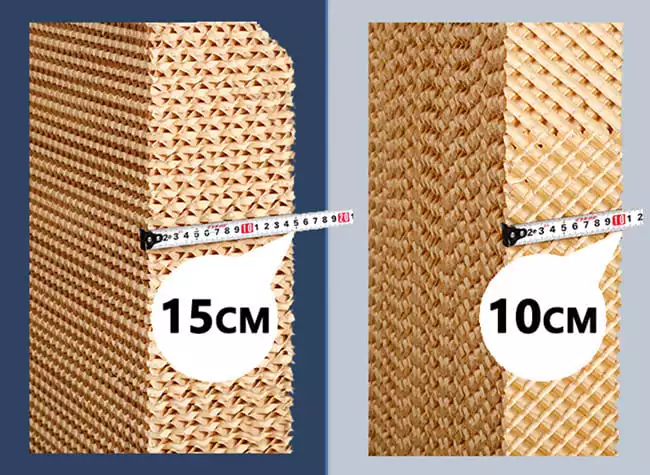

Water curtain

Thickened water curtain make cooling speed faster, when working there is no water spatter, its not easy to deform, and long lifetime





CorTec Evaporative air cooler make the speed cool faster.
